Product Details and Advantages:

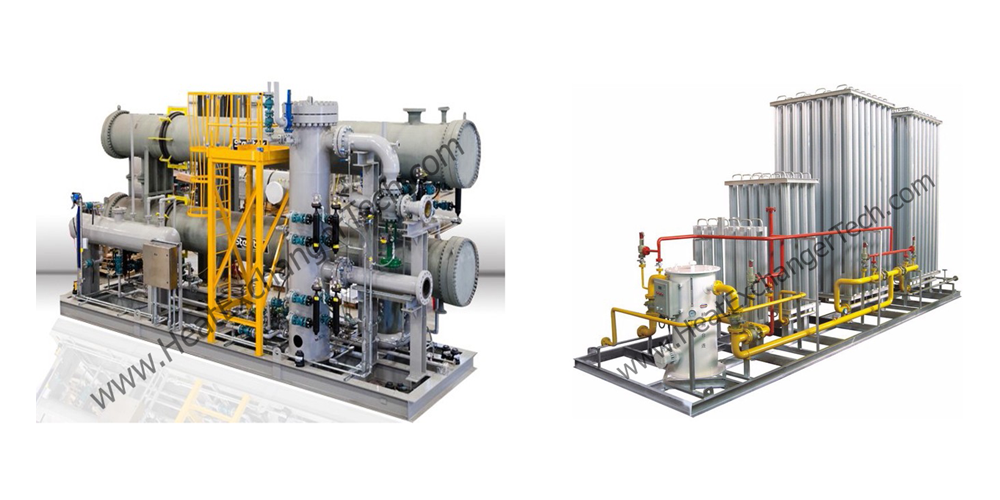

The skid-mounted station has an advantage on on-site selection, civil construction conditions, construction period. Built-in the city zone, site selection can be done easily and quickly installed.

1. The skid-mounted station can be installed in the existed gas station, suitable for the oil and gas construction together.
2. Skid-mounted station adapts to most of the bus parking lot, control center, expressway service area, and so on.
3. Skid-mounted station especially adapts to the situation on initial gas vehicles less, short construction period, shortage of funds and covers can be expanded. Once the gas vehicles reach
   saturation, can remove storage skids, and expanded into the conventional station. These can achieve better economic benefits and promote project development.
4. Owing to each part of the LNG Skid-mounted station is precast production. It can effectively control the fabrication and inspection. Thus quality performance is good, security is guaranteed.
5. In easy leaking points (such as valves operation area, tanks nozzles position), set the low-temperature alarm device and combustible gas leakage alarm device, testing and monitoring the leaking points. Once leakage occurred, the alarm device will send sound and light alarms to ensure the safety measures in a timely manner.
6. Set emergency shutoff device, once supervises the abnormal situation, it will automatic emergency cut-off, to ensure the accident, not diffusion and spread.
7. How to control the accident’s diffusion and spread once leakage occurred? It is the key trouble. Through analysis for the features of LNG, the structure of tanks, Auxiliary safety facilities, to set tank receiving at the bottom of the storage tank and diversion groove all around. Thus leaked LNG will be led up to collecting reservoir at the outside of storage skid. Then use the high expansion foam cover, to reach the accident control in the scope of minimum.
8. The density of LNG or low-temperature gas (below -110 degrees) is greater than the environmental air density, it will deposit to the low-lying place when leaked.
9. Nozzles’ position is accident-prone because it has a lot of junctions, easy to produce stress concentration.
10. Leaked LNG collected by collecting reservoir easier is covered by high expansion foam. Thus, it is very important to set tank receiving, diversion groove, and collecting reservoir at the skidmounted station.
11. Independent skiing blocks are as the basic unit, each independent skiing block be precast to independent products in the factory.
12. Skiing blocks on-site only are connected through pipelines, regardless of the fire construction in principle.
13. The base of each skiing block is an integral steel base, it only needs to lay on the existed concrete foundation, use the expansion bolts to fix it. Jet skiing skid-mounting should set up the tent.
