Product Details:

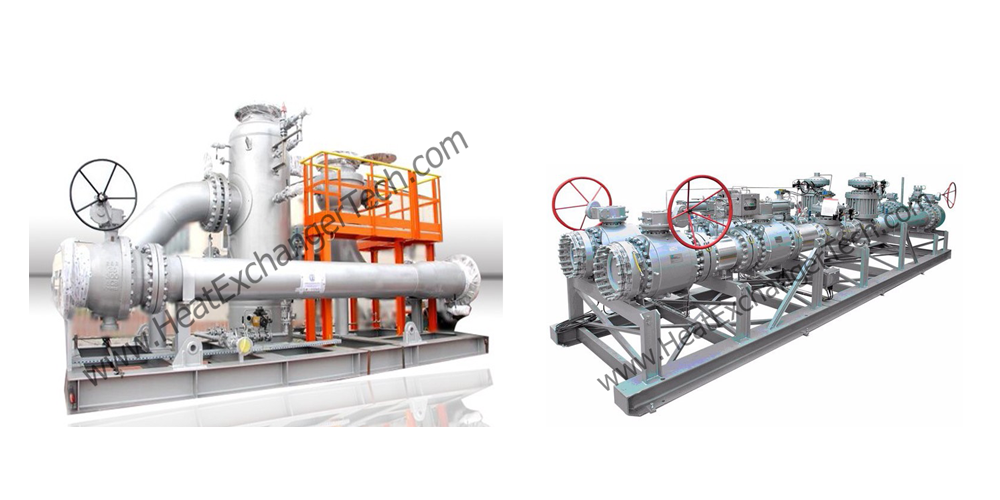

Three-phase horizontal metering separator skid including gas pressure, gas-oil interface, and oil-water interface of the automatic control system and devices equipped with the complete manifold system, easy to operate, including the bypass pipeline and oil, gas, and water-connected manifold, all inlet, and outlet of main fold used flange connection. The collision frame can be disassembled.

Separation Principle:

Three-phase horizontal separator using the principles of gravity separation of oil-gas-water in the three-phase separator. In the upper cavity of the separator is the gas chamber, the gas outlet at the upper part of the cylinder; the weir plate and lower part are divided into the oil chamber and the water chamber, the fluid enters the separator to the upper water chamber first, under the action of gravity, the lower part is water, water is above the upper part of the oil, oil and natural gas into space.

The height of the weir plate is about 1/2 of the cylinder, so we should ensure that the water level is below the weir height in the working process, the highest level of oil in the level of 3/4, the oil will be above the water overflow weir plate into the oil chamber, which is the working principle of the separator.

The metering of natural gas through the orifice plate flow meter, you can use the manual calculation is the number of records in the recorder output, can also be calculated automatically connected data acquisition system.
Oil-water measurement using a turbine flow meter, flow of turbine flow meter installed on top of the monitor, you can directly read out the data, can also be connected to the data acquisition system, the traffic data to the data acquisition system.

The pressure of the separator is regulated by the backpressure control system of the gas pipeline, and the oil-water level is adjusted through the liquid level control system.
